Usual configurations

Combinations of equipment to cover any need for crushing... and any budget

Free technical advice, to calculate various investment/production options

Equipment for rock crushers and miners who want to make money without unnecessary complications

We have been rock crushers directly for more than 30 years, and we have worked in all types of material banks. The summary of our experience is that it is better to invest in a new crushing plant suitable to the needs, through a credit that will be paid with the same production and without failures, than the popular alternative of buying a used equipment of lesser price, with lower production due to failures, high operating costs and irregular deliveries to customers of the crushed product.

Screening of river material in coarse gravel, medium gravel and sand

Inclined vibrating screen, on support legs

Belt conveyors, stationary, 4

Crushing of river material, production of sand, stone chips and/or gravel, stationary system, minimum investment

Belt feeder, variable speed, with vibratory grizzly
Cone crusher, on support legs or tires
Inclined vibrating screen, on support legs
Belt conveyors, stationary, 6

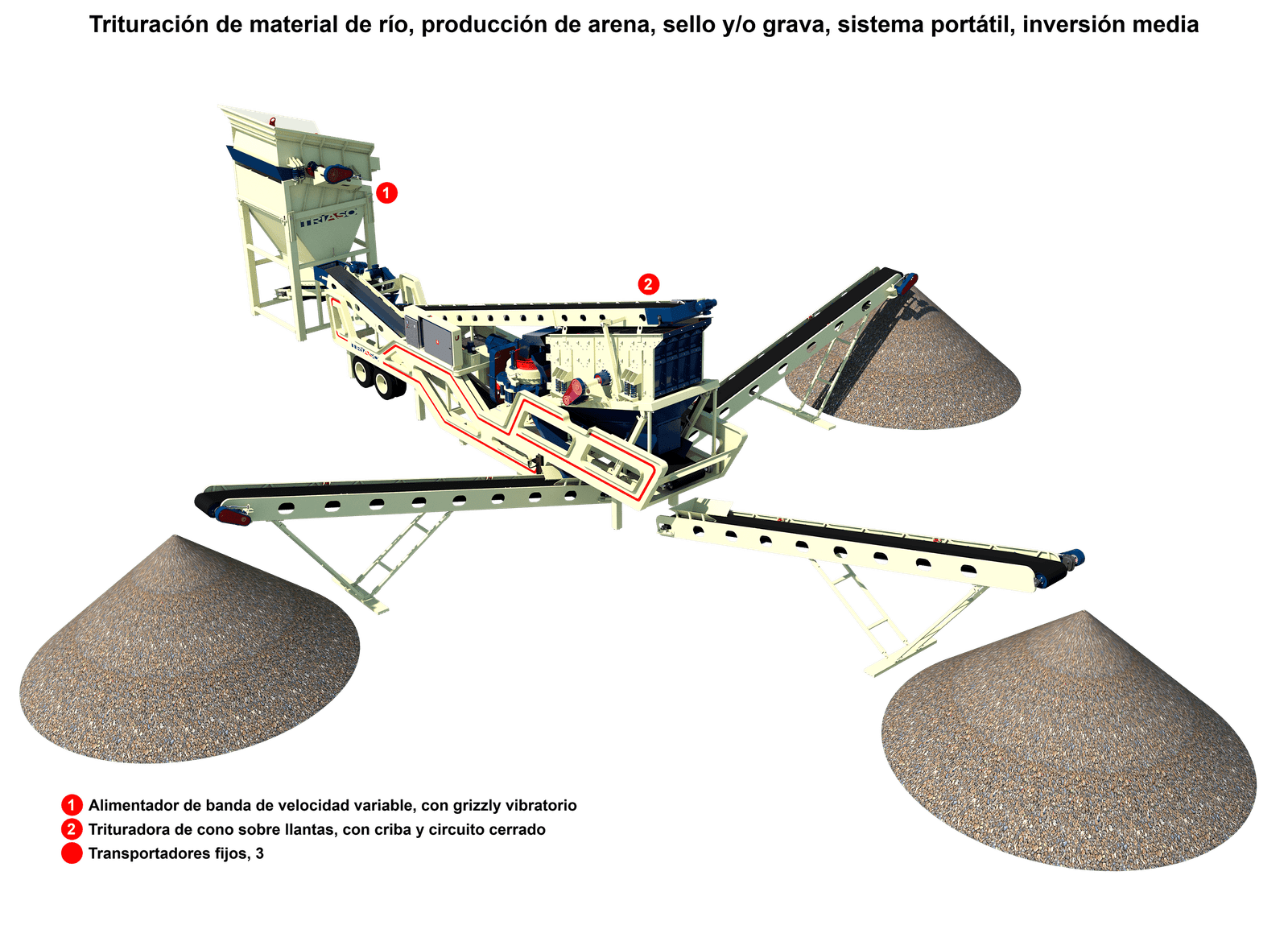

Crushing of river material, production of sand, stone chips and/or gravel, portable system, medium investment

Belt feeder, variable speed, with vibratory grizzly
Cone crusher, on tires, with screen and close-circuit
Belt conveyors, stationary, 3

Crushing of river material, high production of sand and stone chips, stationary system, minimum investment

Belt feeder, variable speed, with vibratory grizzly
Cone crusher, on >support legs or wheels, for secondary crushing
Cone crusher or vertical impactor, on support legs or wheels, for tertiary crushing
Inclined vibrating screen, on support legs
Belt conveyors, stationary, 7

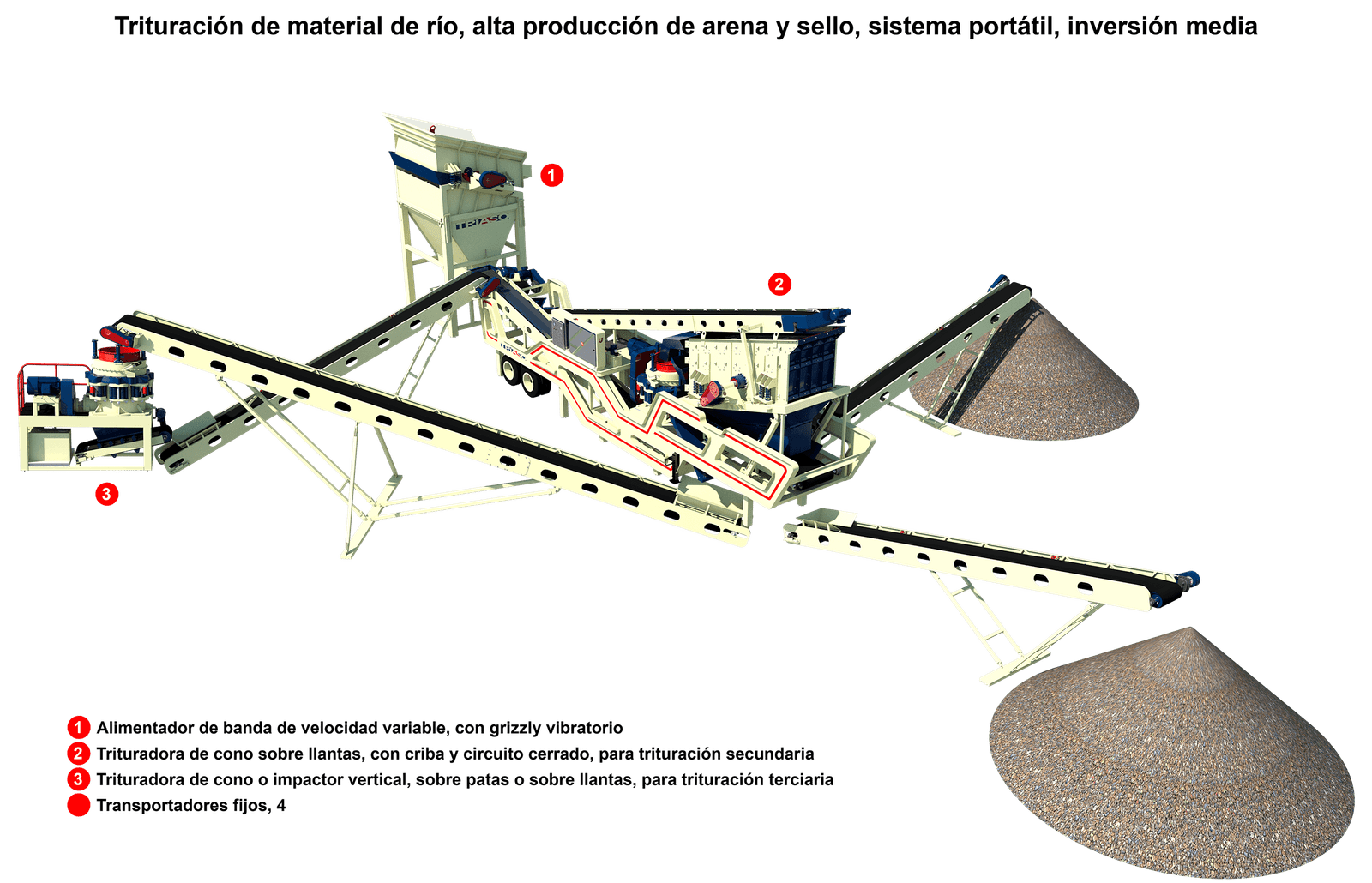

Crushing of river material, high production of sand and stone chips, portable system, medium investment

Belt feeder, variable speed, with vibratory grizzly
Cone crusher, on wheels, with screen and close-circuit, for secondary crushing
Cone crusher or vertical impactor, on support legs or wheels, for tertiary crushing
Belt conveyors, stationary, 4

Recycling of demolition material, portable system, medium investment

Jaw crusher on wheels, equipped
Electromagnet, to separate the reinforcing steel
Cone crusher, on wheels, with screen and close-circuit
Belt conveyors, stationary, 3

Crushing of blasted material, production of base material, stationary system, minimum investment

Jaw crusher, on support legs, with feeder
Belt conveyor, stationary

Crushing of blasted material, production of base material, portable system, medium investment

Jaw crusher, on wheels, equipped
Belt conveyor, stationary

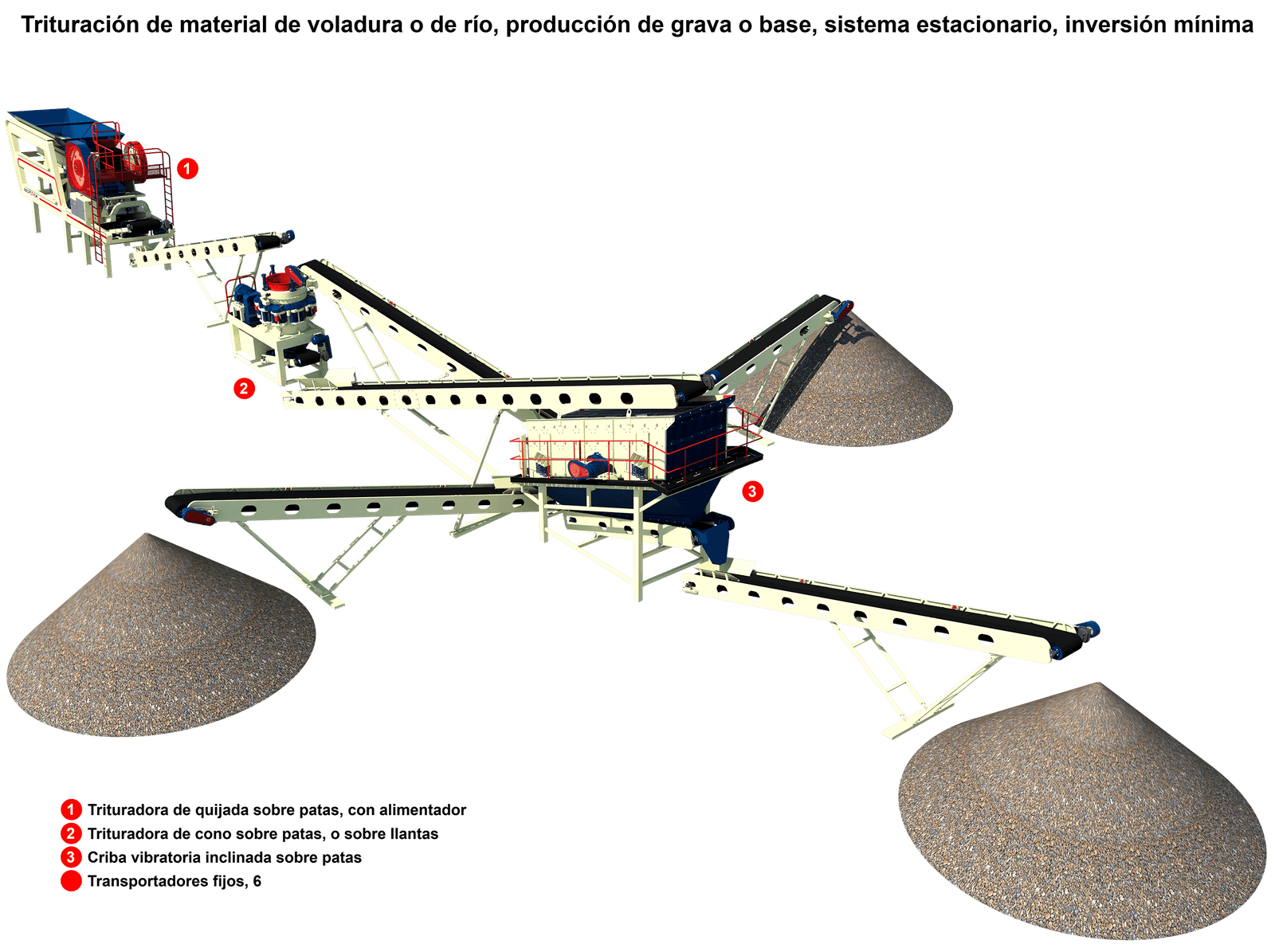

Crushing of blasted or river material, production of gravel or base material, stationary system, minimum investment

Jaw crusher, on support legs, with feeder
Cone crusher, on support legs or wheels
Inclined vibrating screen, on support legs
Belt conveyor, stationary, 6

Crushing of blasted or river material, production of gravel or base material, portable system, medium investment

Jaw crusher, on wheels, equipped
Cone crusher, on wheels, with screen and close-circuit
Belt conveyors, stationary, 3

Crushing of blasted or river material, high production of stone chips, stationary system, minimum investment

Jaw crusher, on support legs, with feeder
Cone crusher, on support legs or wheels, for secondary crushing
Cone crusher, on support legs or wheels, for tertiary crushing
Inclined vibrating screen, on support legs
Belt conveyors, starionary 7

Crushing of blasted or river material, high production of stone chips, portable system, medium investment

Jaw crusher, on wheels, equipped
Cone crusher, on wheels, with screen and close-circuit, for secondary crushing
Cone crusher, on support legs or wheels, for tertiary crushing

Belt conveyors, stationary, 4

Crushing of blasted or river material on a small scale, production of gravel or base material, portable system

Integral crusher, with feeder, jaw, cone, screen and closed circuit
Belt conveyor, stationary

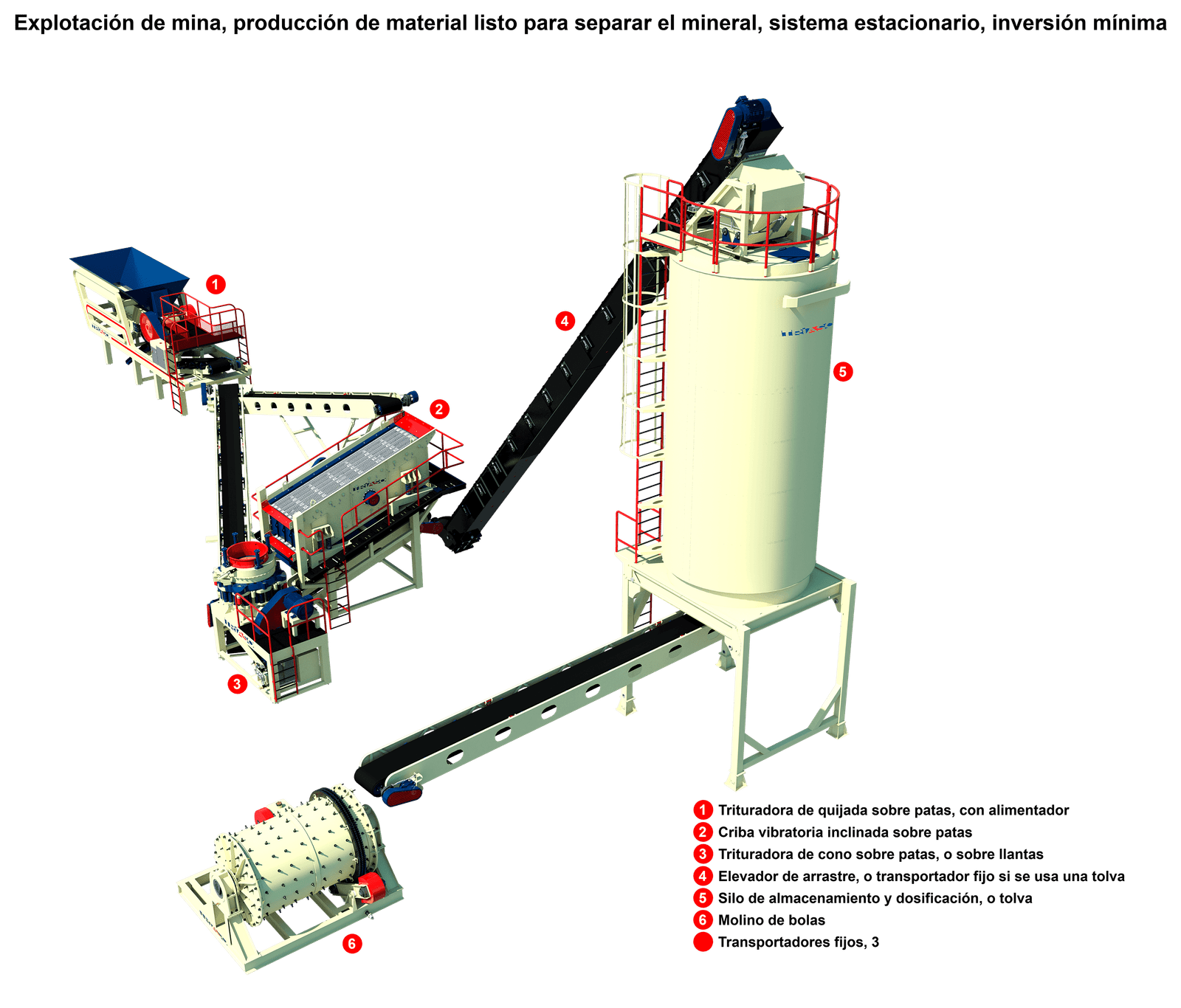

Mining, production of material ready to separate ore, stationary system, minimum investment

Jaw crusher, on support legs, with feeder
Cone crusher, on support legs or wheels
Inclined vibrating screen, on support legs
Drag conveyor, or stationary conveyor if a bin is used
Storage and dosing silo, or bin unit
Ball mill
Belt conveyors, stationary, 3

Mining, production of material ready to separate ore, portable system, medium investment

Jaw crusher, on wheels, with feeder
Cone crusher, on wheels, with screen and close-circuit
Storage and dosing silo, or bin unit
Ball mill
Belt conveyor, stationary

Small-scale mining, production of material ready to separate ore, portable system

Integral crusher, with feeder, jaw, cone, screen and close-circuit
Storage and dosing silo, self-erecting or bin unit
Ball mill
Belt conveyor, stationary

Manual processing of small veins ore, manually extracted by a small group of miners

Mini jaw crusher
Mini hammermill
Mini ball mill
Mini gravity separator

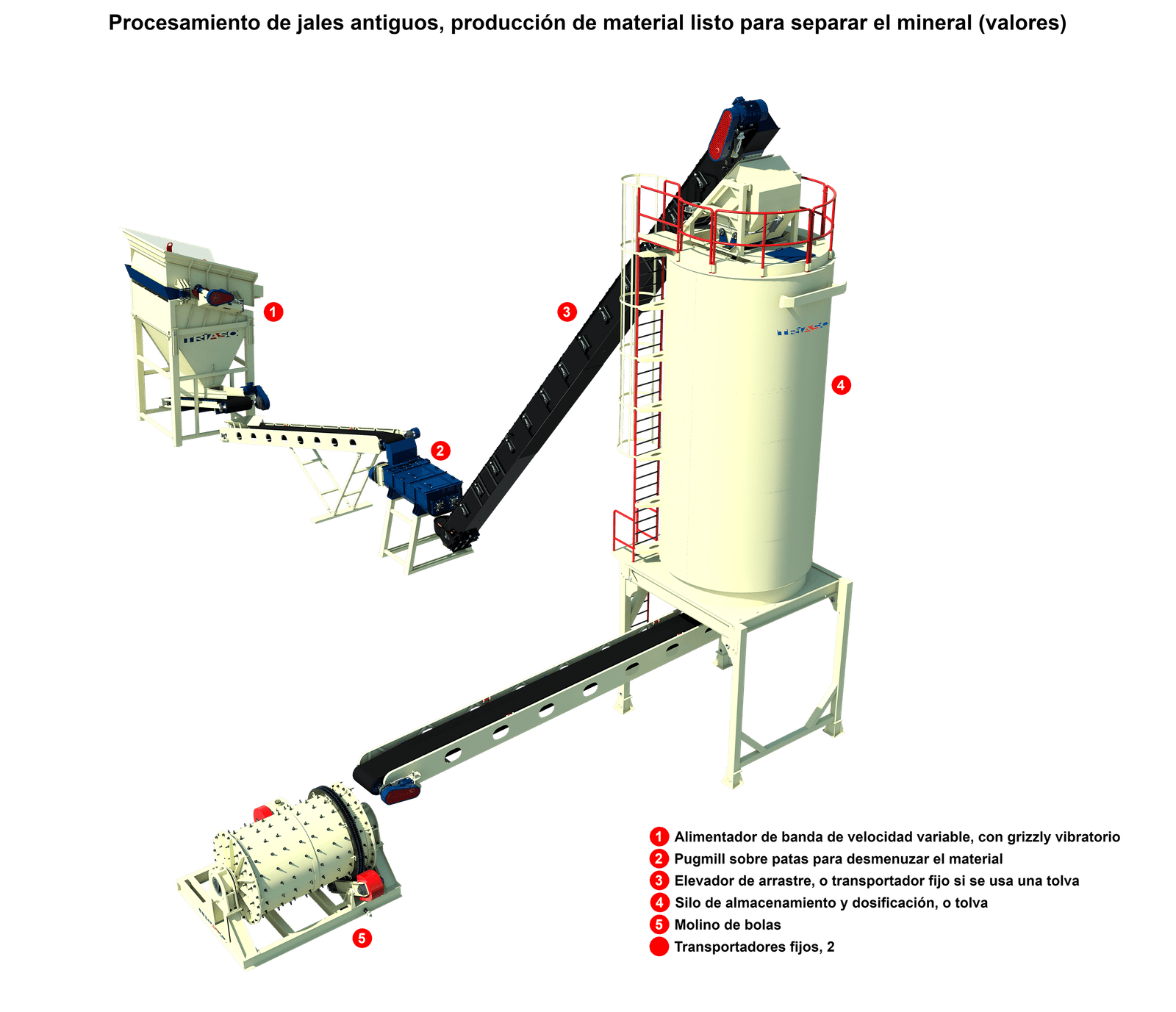

Processing of tailings, production of material ready to separate ore

Belt feeder, variable speed, with vibratory grizzly
Pugmill, on support legs to crush the material
Drag conveyor, or stationary conveyor if a bin is used
Storage and dosing silo, or bin unit
Ball mill
Belt conveyors, stationary, 2
